largely solid stainless steel
2-speed working screw
2-speed feed screw
hygienic design: machine base constructed
machine stand largely made of solid
stainless steel, polished surfaces,
rounded edges, sloping surfaces,
harmless blue plastics and seals
in the product and spray area.
– with 130 mm perforated disc diameter
– three-phase motor IP 55 completely enclosed
approx. 14/18 kW
– thermal overload cut-off
– built-in control cabinet
– 400 volts, 3 phases, 50 Hz
– control voltage 24 volts
– approx. 130-liter hopper with locked protective grille
– separate, two-speed feed motor,
1.8 kW separately switchable

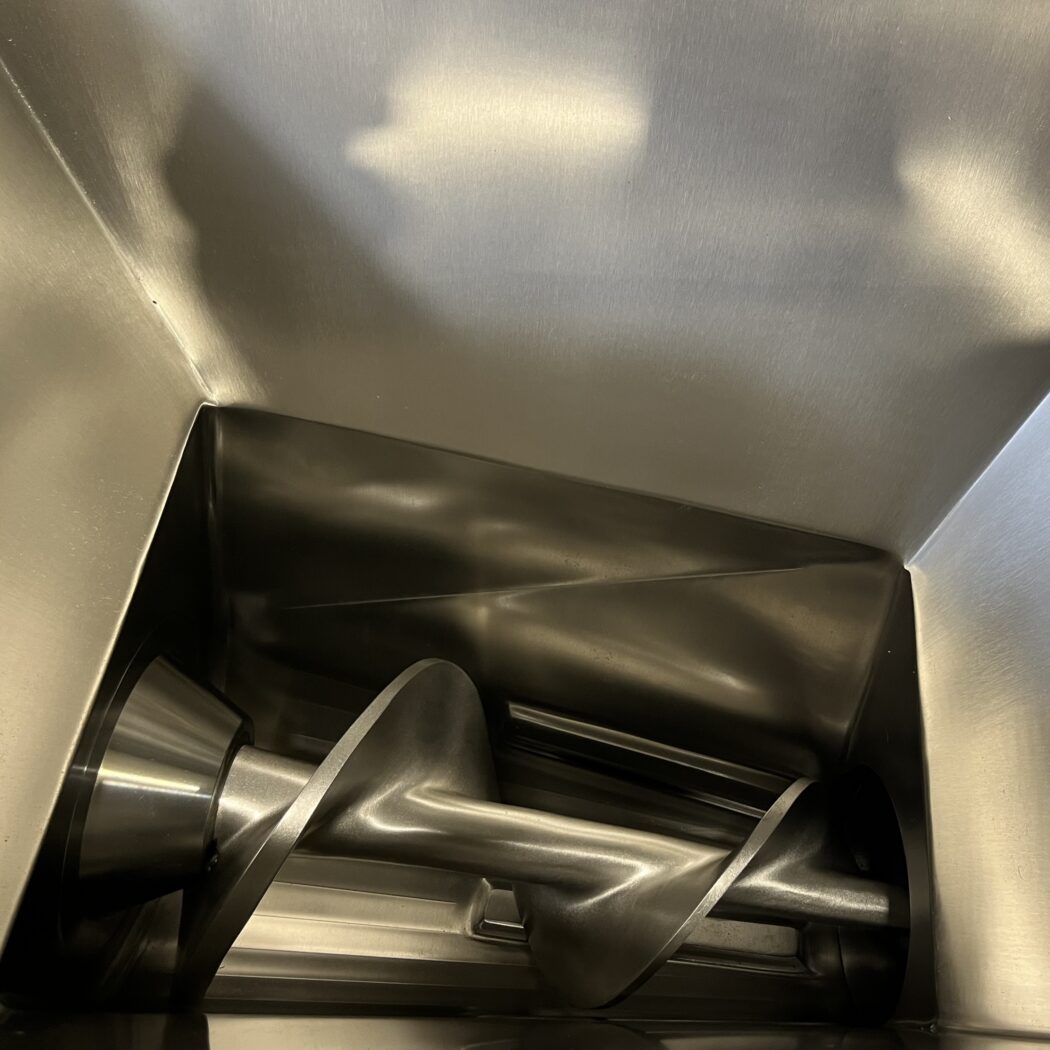

– conical extra-wide feed screw, 2-speed
made of special stainless steel casting, at right angles to the
working screw
– solid stainless steel screw housing with
hardened running surfaces
– 5 m supply cable
– machine stand closed at the bottom
– screw ejector
– spring support for protective grille
– stainless steel grinding nut
– cutting set consisting of:
2 knives, 1 pre-cutter 5-bar
1 perforated disc each with 3, 8 and 13 mm
includes options:
– forward and reverse feed screw for mixing
– Preparation for cutting drum,
pneumatic connections, pressure control valve,
maintenance unit, connection to control system
excl. cutting drum package
incl. cutting screw, cover, etc.
