Seydelmann Grinder AE130/3

Largely solid stainless steel
2-speed working worm
2-speed feeder worm
with 130 mm hole disc diameter
thermal overload cut-off
Built-in switch cabinet for 230 V
approx. 300 litre hopper

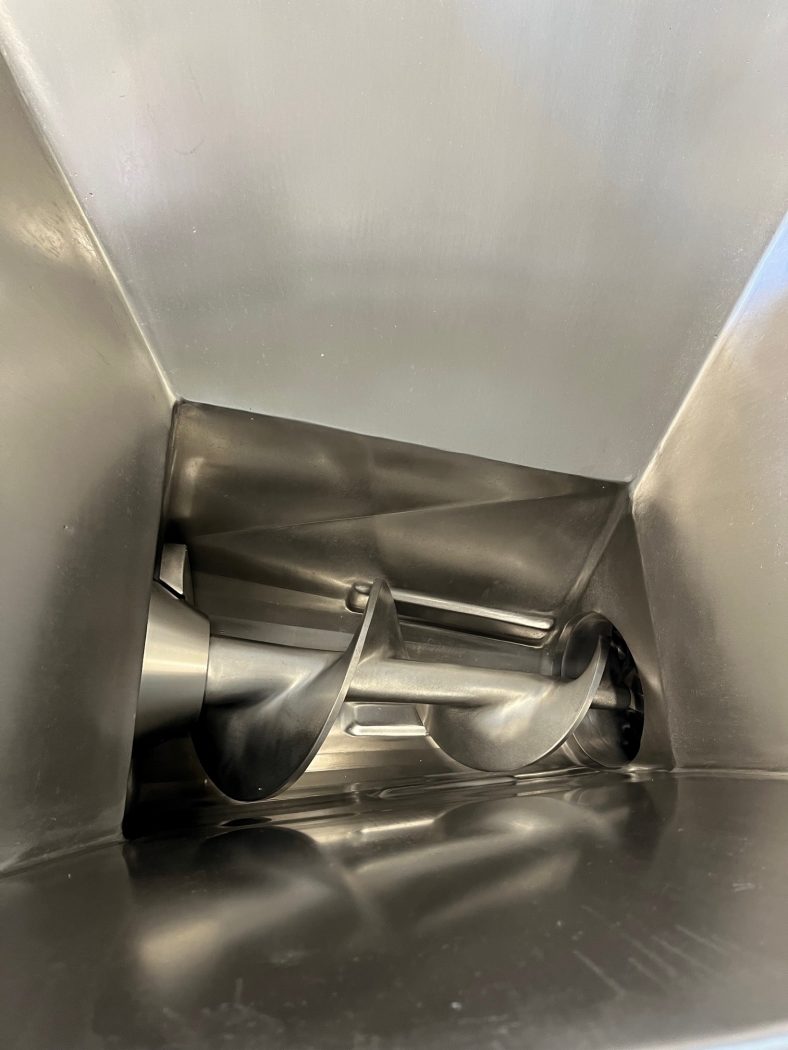

Extra wide conical stainless steel feed worm
at right angles to the stainless working worm
Solid stainless steel worm housing
with hardened running surfaces
Bayonet lock made of stainless steel
Discharge hand guard electrically interlocked
Rocker switch on the upper edge of the hopper
Machine stand closed at the bottom with
ventilation system
Recessed covers
Drive for 400 V, 3 phases, 50 Hz
Control voltage 24 V
Three-phase motor IP 55 fully enclosed
approx. 14/18 kW power
Separate, two-speed feeder motor 1.8 kW
Safety step and raised feet
Hygienic fasteners
Loading device for BW 200
hydraulically installed on the left
Feeder auger forwards/backwards
for mixing / mixing capacity approx. 25 % of hopper content
Pneumatic rejection device
Level measurement, 1-stage with switch-off
when empty
Cutting set consisting of:
2 knives, 1 pre-cutter,
1 perforated disc each with 3, 8 and 13 mm
1 feed knife E/130,
1 perforated disc E/130 3 mm
1 solid steel blade E/130 diagonally grooved
with internal guide.
