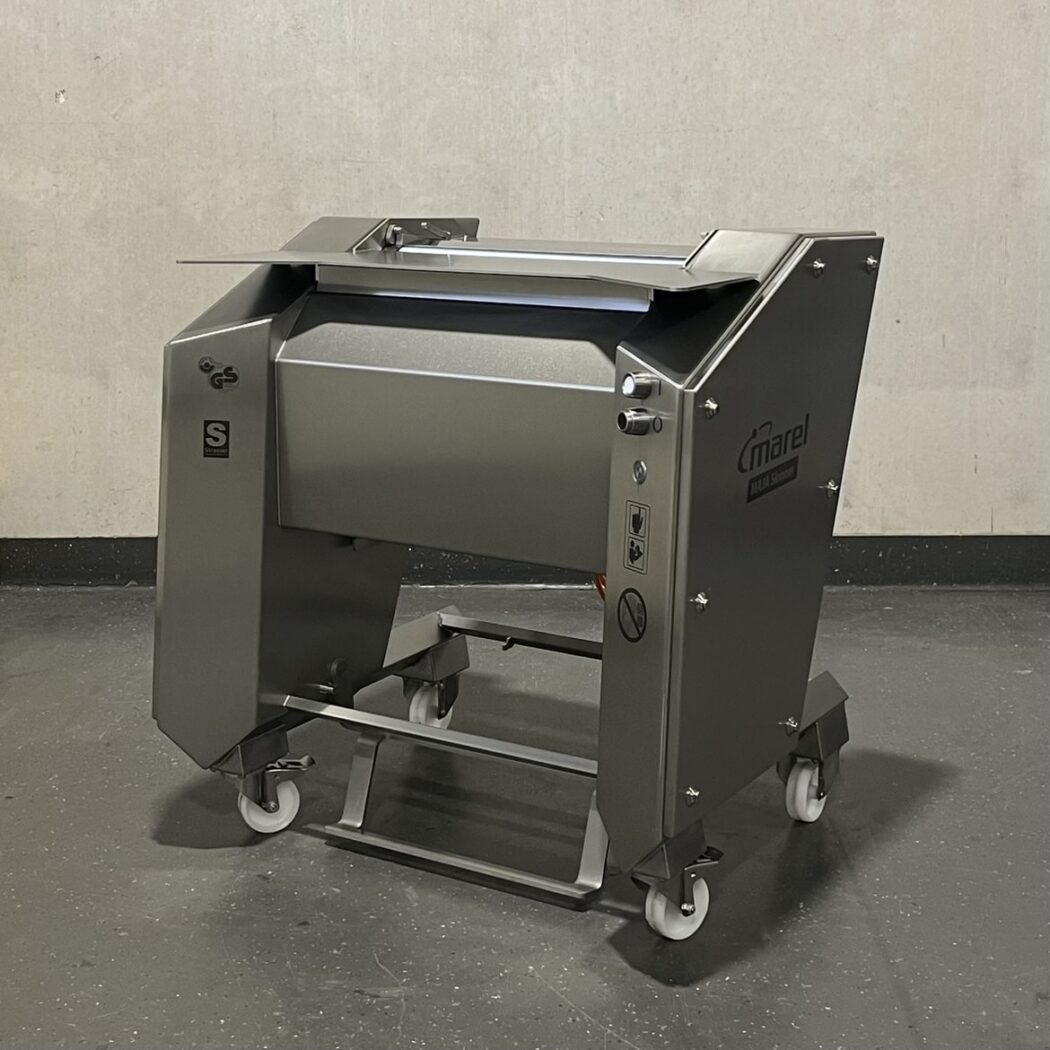

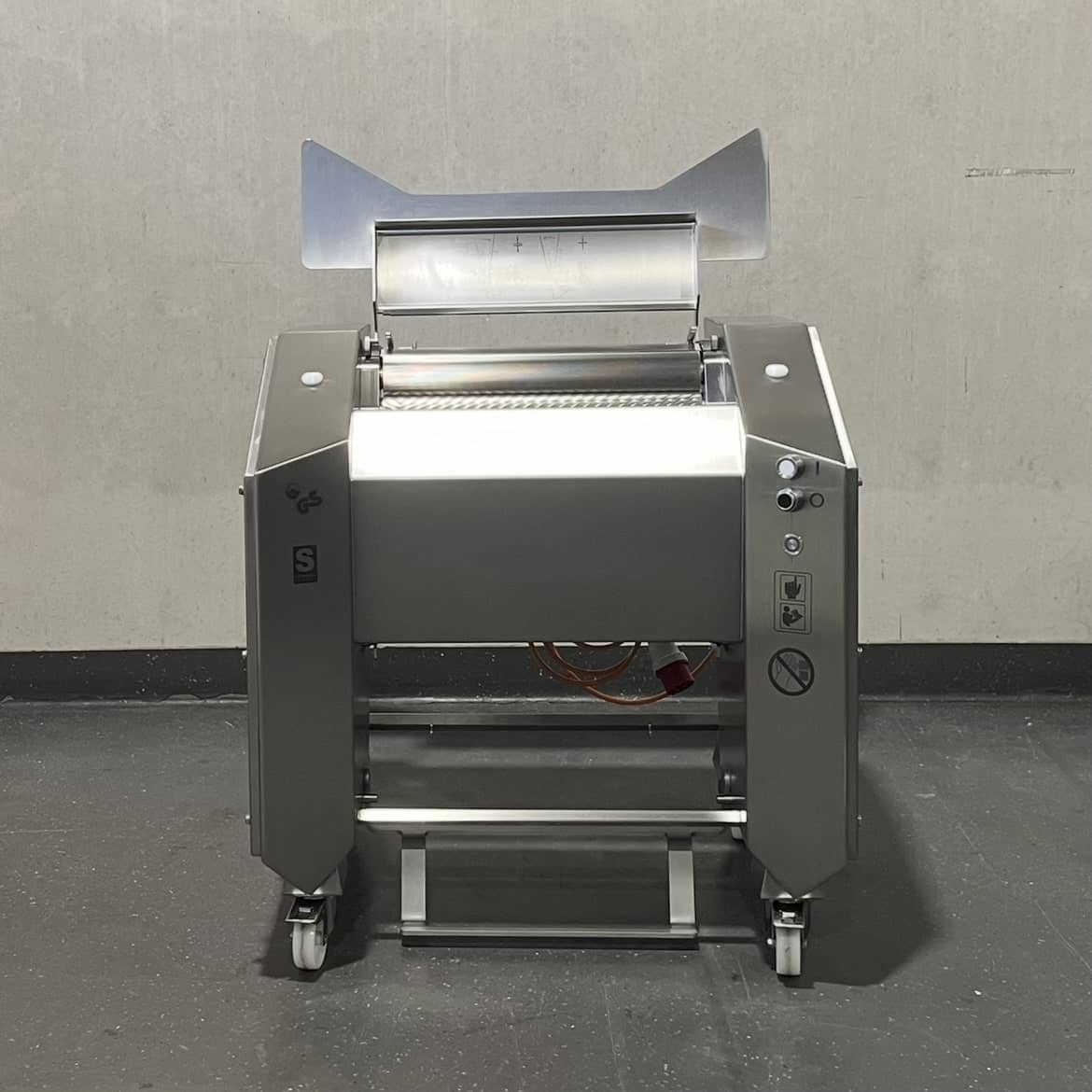

Maja Membrane Skinning Machine EVM5006

– industrial fleece removal machine with Z-96 pull roller for beef
– for mechanical (open) fleece removal from all fresh
cuts of pork, beef, veal, lamb, and poultry.
EVM 5006: above-average cutting width of 554 mm
for convenient derinding of wide cuts, e.g., beef,
boneless pork chops.
features and characteristics:
– ideal working ergonomics enable consistently high
processing quality
– practical machine design allows high
product throughput thanks to minimal setup times
– machine housing without operating levers on the side panels
saves space and allows flexible installation
– machine housing in hygienic design
– base frame without base plate and straight surfaces
(with continuous V-shaped drip edge)
– transport and scraper roller with hygienic radius
– new design of the processing table for optimum
access in cleaning position
– nozzle block with efficient cleaning nozzles
technical data:
– cutting width: 554 mm
– electrical connection: 0.55 kW
– voltage: 400V/50Hz/3Ph
– weight: approx. 200 kg
machine dimensions:
– width: 946 mm
– depth: 760 mm
– height: 1005 mm
